Salient Features
- High
temperature resistance (50C to 300C).
- Good Dielectric properties
(2mm thick) 15 KV/mm.
- Dielectric Constant at 1 Mhz
approximately 2B.
- Specific volume resistance at
(500 V) Q/Cm -6 x 10.
- Insulating resistance MSZ per
Km of cable - 9 x 10.
- Extreme resistance to
ozone & corona.
- Tensile strength 7000
MN/M.
- Elongation at breaks 4000 %.
- Bending: tested as per BS
2848 Appendix B found
satisfactory.
- Voltage proof test: tested as
per BS 2848 Appendix N up to 10,000 V & found satisfactory.
- Good Non-Flammability.
- Good Chemical resistance.

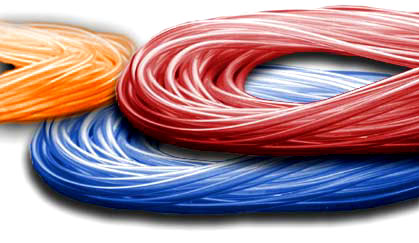

- Silicone rubber sleeves are
available in 0.5 mm to 35 mm ID with 0.5 mm to 3.0 mm wall
thickness.
|
| Applications |
|
- Cables
for industrial equipment,
cookers, microwave ovens, barbecue grills, electric irons,
automatic coffee machines, fan-forced heaters, x-ray machines,
halogen amps, instrumentation and control panels.
-
Flexible elements for telephones, computer, telex machines, remote
control, wet covers and interconnectors.
- Cable terminals, ignition
cables, cable bushing and insulators cables sleeves.
- EMI, EMP applications
|
|
